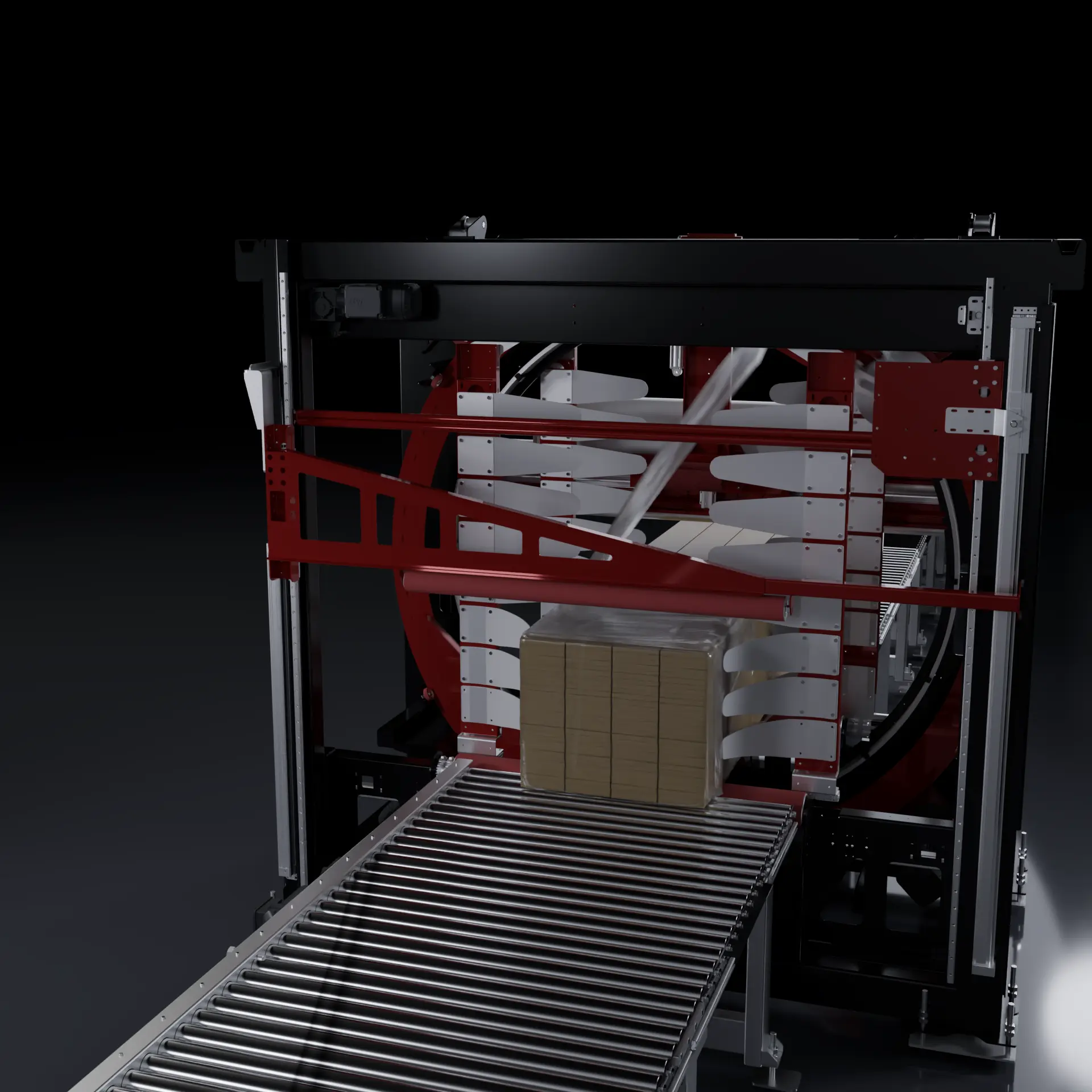

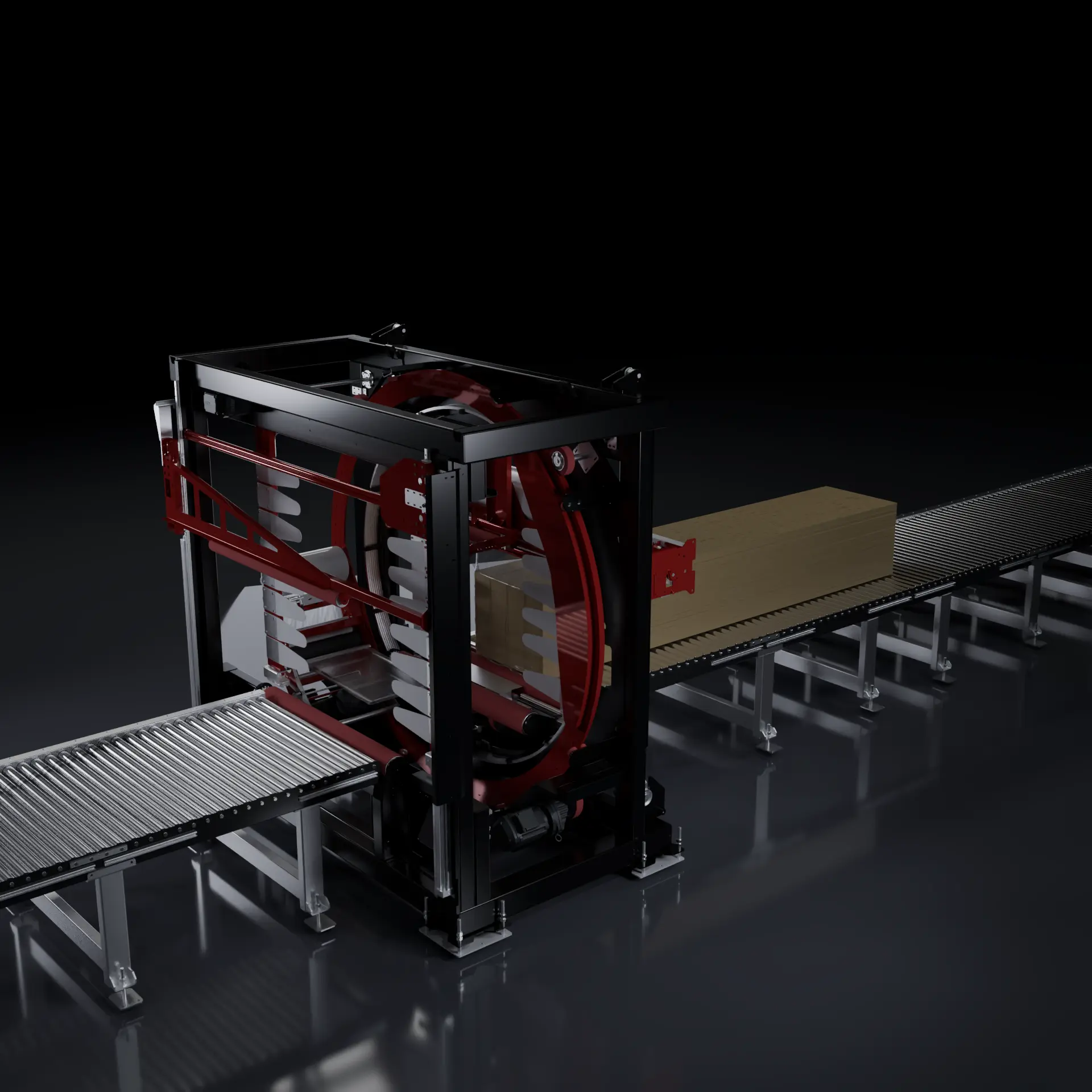

Vertical stretch wrapping for diverse loads

OMC-V Series

Automate your stretch-film packaging with machines built for robust transport protection and high throughput.

Book a consultation

Why choose OMC-V for your packaging?

  • Optional six-sided protection with end and top sheets
  • Our wrapping machines are engineered for robust, reliable 24/7 operation
  • Octomeca manufactures wrapping machines from compact units to some of the largest in the world, serving products of all sizes across various industries

With Octomeca, your`re always on the right track!

  • Reduce transport damage & material waste
  • Increase throughput with fully automatic wrapping
  • Modular design adapts to your load size
  • Tailored solutions for diverse industries

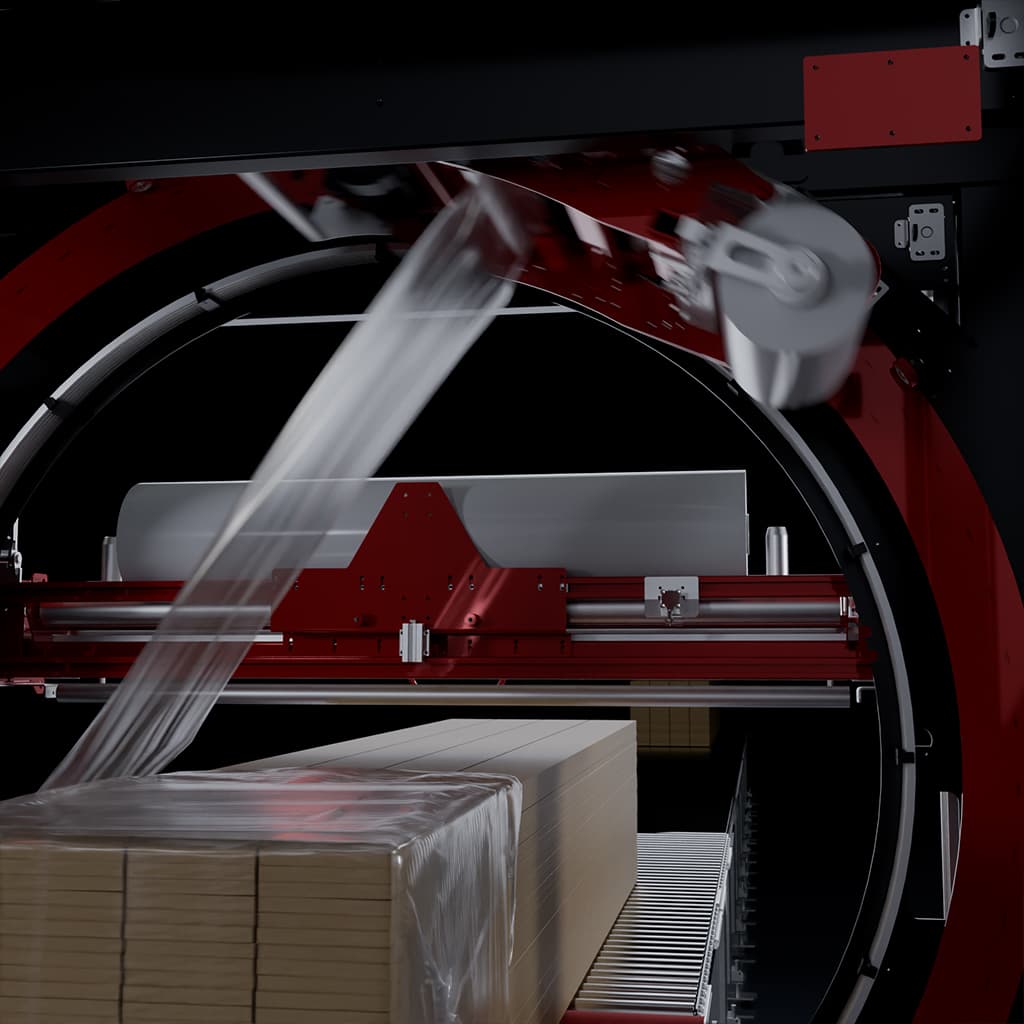

Fully automatic wrapping at maximum scale

The OMC-H Series delivers robust, fully automatic horizontal wrapping for industrial loads
– engineered for high capacity and reliable performance. Key features include:

  • Versatile load handling – wraps palletized and non-palletized goods
  • Vertical rotation carriage – efficient, consistent film application
  • Flexible sizing – predefined modular sizes or fully tailored solutions
  • High throughput
  • Market-leading scale – largest fully automatic wrapping machines available
  • Reliable performance – built for industrial environments and long-term operation

From Pallets to Odd-Shaped Loads

Efficient and secure pallet wrapping

Protect loads during transport and storage with fully automatic, reliable vertical wrapping. Ideal for high-volume logistics.

Custom wrapping for irregular shapes

From small to large loads, the OMC-V ensures consistent protection and stability for every product type.

Detailed Features
& main options

As option, the machines can be equipped with various options on different segments.

End closing applicator:

Provides complete six-sided protection by sealing the product ends, helping to protect against moisture, dirt, and transportation damage.

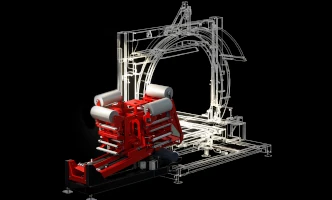

Automatic roll changer 1+3:

Automatically changes film rolls, maximizing uptime and minimizing production interruptions.

Bottom Runner Applicator:

Automatically inserts bottom runners beneath the load, improving load stability and facilitating handling and transportation.

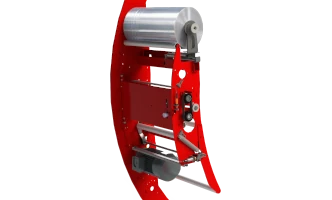

Power Pre-Stretch Film Carriage:

Optimizes film consumption through advanced pre-stretch technology, reducing material costs while maintaining load security.

Click an image to learn more.

Capacity Examples of the OMC-V

See what our machines are capable of with a few real-world examples. For your specific requirements, contact us – we’re confident we can provide the perfect solution for your packaging needs.

OMC-V10
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 1000 MM

MAX. ROTATION SPEED: 90 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
1412000
1253000
966000
6512000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Grip and cut ( no heat seaming )
OMC-V16
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 1600 MM

MAX. ROTATION SPEED: 60 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
1102000
953000
718000
4712000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting
OMC-V20
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 2000 MM

MAX. ROTATION SPEED: 30 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
822000
673000
456000
2712000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting
OMC-V22
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 2200 MM

MAX. ROTATION SPEED: 27 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
782000
633000
416000
2512000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting
OMC-V24
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 2400 MM

MAX. ROTATION SPEED: 25 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
752000
603000
396000
2312000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting

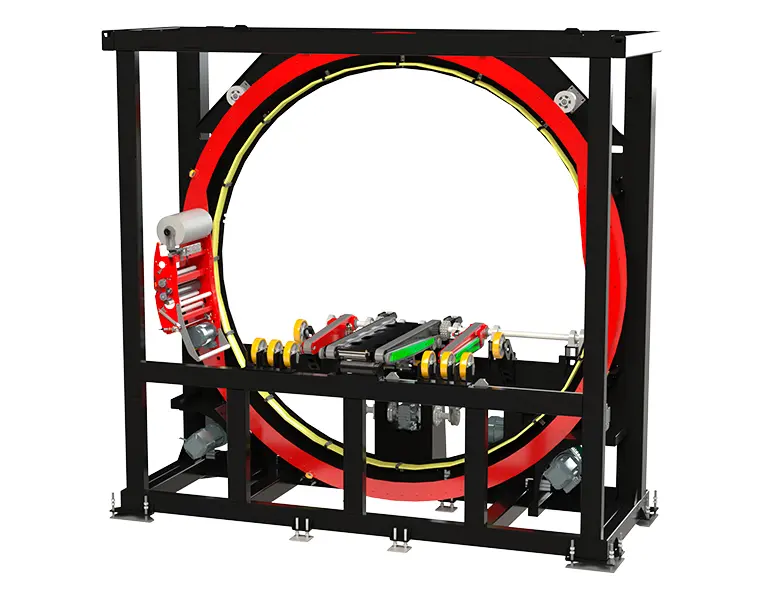

OMC-V30
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 3000 MM

MAX. ROTATION SPEED: 20 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
642000
513000
326000
1912000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting
OMC-V32
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 3200 MM

MAX. ROTATION SPEED: 19 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
622000
493000
316000
1812000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting
OMC-V34
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 3600 MM

MAX. ROTATION SPEED: 16 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
582000
433000
276000
1512000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting

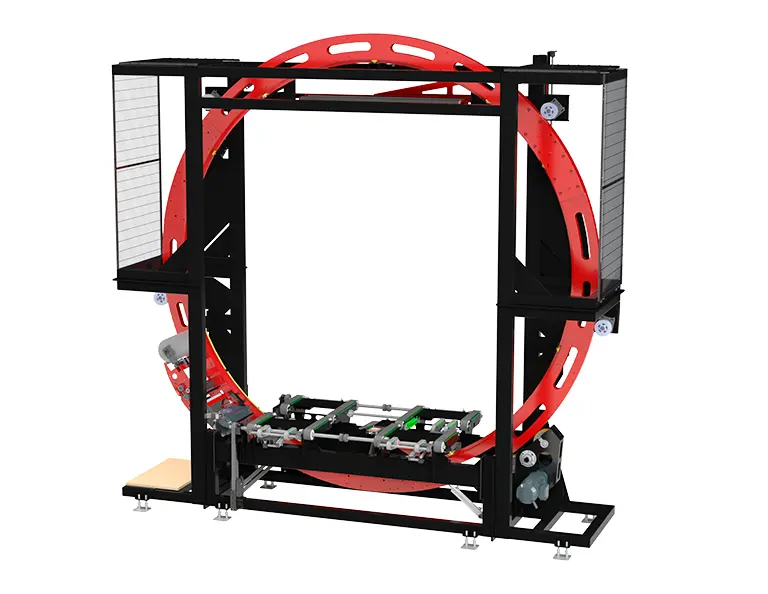

OMC-V40
Tämän kuvan alt-attribuutti on tyhjä; Tiedoston nimi on diameter.jpg

RING DIAMETER:
Ø 4000 MM

MAX. ROTATION SPEED: 15 RPM

CAPACITY TABLE

CAPACITY ( LOADS / HOUR) LOAD LENGTH (MM)
542000
413000
286000
1412000

CAPACITY CONDITIONS

  • Overlapping 50%
  • Conveyor speed 500mm/s
  • Heat seaming / cutting

The right wrapping solution starts with a conversation!

Together, we will take a look at your current situation and your requirements. Perhaps one of our standard solutions will already suit your needs, or we can plan a customized solution that is tailored specifically to your scenario.

Contact

When is
OMC-V the
right solution?

  • High volume operations
  • Long products
  • Six side protetion
  • Demanding logistics chains

Built for the
most demanding Operations

  • Heavy-duty solution
  • High-troughput expert
  • Largest scale wrapper
  • Designed for industrial extremes

What would you like to do next?

Request a Quote or
book a Consultation

Get a personalized offer or speak specifications with our technical experts to find the perfect solution for your need.

Contact

Download brochures


Or scroll down for more features and applications.

Quality that convinces

Over 2000 machines delivered worldwide

Octomeca machines are trusted by customers around the globe. Our installations across industries,our solutions ensure reliable load protection and proven performance in demanding logistics

Certified quality
you can trust

All Octomeca machines are engineered and manufactured to meet the highest international quality standards. Rigorous testing and quality controls guarantee consistent performance and long-term reliability for every customer.

More than a machine –
a long-term partner

Maximize the performance and lifespan of your Octomeca packaging machines with our Lifecycle Care program. From professional installation and start-up support to preventive maintenance, spare parts, operator training, and machine modernization, we provide comprehensive service and support throughout the machine lifecycle, minimizing downtime and ensuring reliable, efficient operation.


Part of the global FROMM Group

Strong Roots. Global presence.

As a member of the FROMM Group, Octomeca combines specialized wrapping expertise with the resources of a globally established packaging company. With operations and service partners worldwide, the FROMM Group ensure long-term reliablity, financial stability, and continuous product development.

For our customers, this means

  • Long-term investment security
  • Global service and spare parts availability
  • Access to international expertise
  • Continuous development and support

Octomeca remains a specialized manufacturer – strengthened by the global structure of the FROMM Group.

Discover the power of FROMM Group

Powered by CookieAdmin
REQUEST FOR SERVICE

    URGENT REQUEST

    I have read and agree to the Privacy Policy.

    LOAD DETECTIONING AND MEASURING OPTIONS

    STANDARD MODULAR ROLLER CONVEYORS

    Standard lengths: 1575mm, 1920mm, 3150mm and 3450mm

    Options:

    • Conveyor dimensions
    • Turning roll pitch and diameter

    TIP:
    Use a roller conveyor with a 75 mm roller pitch if you need to walk on top of the conveyor or if the conveyed product has cardboard feet underneath it.

    HEAVY DUTY ROLLER CONVEYOR

    Options:

    • Conveyor dimensions
    • Polyurethane rollers
    LOAD DETECTIONING AND MEASURING OPTIONS

    LIDAR SENSOR OPTION FOR IRREGULARLY SHAPED LOADS

    When the outermost edge of a product cannot be reliably detected with photoelectric sensors, LiDAR sensors offer a cost-effective and dependable solution for detecting challenging load shapes.

    LiDAR sensors can be installed on conveyors and machinery as a direct replacement for dedicated photoelectric sensors.

    To ensure reliable performance in demanding environments, our compressed-air cleaning system keeps the LiDAR lens clean and clear by directing compressed air precisely onto the lens through specially positioned nozzles.

    LOAD MEASURING UNIT

    When product measurement is required, we also supply measurement units specifically designed to measure the product’s height and width.

    This function is often used in applications where palletizing and stacking are performed manually, and the product must not exceed specified dimensions.

    In some cases, the wrapping recipe can also be selected automatically based on the product dimensions.

    WEIGHT SCALE

    Product weight can be measured with OMC-weight conveyor.
    The weight can be used for recipe selection or other validation functionalities.

    The weighing conveyor is based on Siemens SIWAREX WP231 legal-for-trade weighing electronics and Siemens WL230 C3 OIML R60 approved load cells. The components used are approved for legal-for-trade weighing applications.

    PALLET LIFTER

    Pallet lifters improve material handling efficiency and enable smooth product transfer between different stages of the production process. They can be used, for example, to load fully wrapped products or products delivered without pallets onto conveyors, as well as to lift products during the wrapping process.

    All pallet lifters are designed and sized according to the load characteristics and application requirements. Our range includes both pneumatic and motor-driven solutions, providing reliable and safe operation even in demanding industrial environments.

    TURNING ROLLERS

    Turning rollers enable controlled and consistent rotation of cylinder-shaped products during the wrapping process, ensuring high-quality and uniform packaging results. The solution is suitable for radial, axial, and through-the-eye wrapping applications across a wide range of coil products.
    Turning rollers integrate seamlessly with Octomeca wrapping solutions. They can be used with the OMC-H Series for axial coil wrapping and with the OMC-R Series for radial and OMC-Silma for through-the-eye wrapping applications.
    Each solution is engineered according to the coil dimensions, weight, and production requirements, ensuring reliable operation, safe handling, and optimal wrapping performance even in demanding industrial environments.

    Some visual content on this website has been created or enhanced using artificial intelligence tools.
    SECOND FILM CARRIAGE

    Allows automatic application of a second film type to meet specific packaging requirements.

    EDGE FOLDING UNIT

    Protects reel edges by applying a narrow film rope along the edges of the reel during the wrapping process.

    FILM TAIL GLUING UNIT

    Applies glue to the film tail after wrapping, eliminating loose hanging tails on the wrapped reels.

    LOADING OPTIONS

    FORKLIFT BARRIER

    • Protect the loading conveyor against forklift.
    • Available different sizes
    • Adjustable height with tools
    • Dimensions according to the needs

    LOADING SIDE STOPPERS

    • For centering the product
    • Adjustable width and height with tools

    FORKLIFT ROPE SWITCH

    • Pull-cord switches for forklift operators enable conveyor start-up control and other operational control functions as required.
    CHAIN CONVEYORS

    Octomeca chain conveyors are custom-built to suit each customer’s products and handling requirements. The number and positioning of chain strands ensure that products are supported at the right points, while the conveyor’s length, height and width are tailored to the application.
    Stainless steel chains are available as an option. Transfer points are designed to ensure smooth product movement from one conveyor to the next.

    BELT CONVEYORS

    Octomeca belt conveyors are custom-built to suit each customer’s products and handling requirements. The conveyor’s length, height and width are tailored to the application, with a suitable belt width selected to provide proper support for the product.

    Transfer points are designed to ensure smooth product movement from one conveyor to the next.

    TRANSFER CONVEYORS

    TRANSFER CONVEYORS

    Options:

    • Conveyor dimensions
    CROSS CONVEYORS

    Octomeca designs and manufactures heavy-duty rotating table and crossing conveyor solutions tailored to the customer’s product dimensions and application requirements.

    TURNTABLES

    Rotating table conveyors change the direction of product flow or rotate products for subsequent handling or processing.

    ROTATING ROLLER CONVEYORS WITH POP-UP CHAIN TRANSFER

    When a product needs to be rotated without changing the direction of the conveyor line, this can be done automatically using a rotating roller conveyor with pop-up chain transfer.

    CROSS CONVEYORS

    When the direction of product flow needs to be changed while maintaining the product’s orientation relative to the conveyor, a conventional cross-transfer conveyor can be used to transfer the product in a new direction without rotating it.

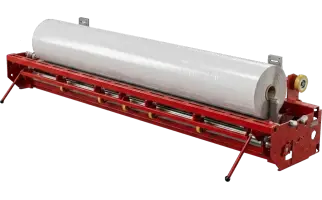

    TOP SHEET

    Protech your load with OMC-TSC - Dust proof top sheet option or OMC-TSB - Splash proof top sheet option.

    TSB – SPLASH PROOF TOP SHEET

    In splash proof protection the top sheet is fed between horisontal film layers sealing the product tightly and preventing damages from the moisture.
    Highly recommended for sensitive products which are under the weather conditions.

    TSC – DUST PROOF TOP SHEET

    In dust proof protection the top sheet is fed under film layers, and the sheet is attached to the load with horizontal wrapping.

    RCA - AUTOMATIC FILM ROLL CHANGER

    Increase your production efficiency and work ergonomics with automatic film roll changer. Available types: RCA 3+1, RCA 4+1 and RCA 9+1

    RCA 3+1

    RCA 4+1

    RCA 9+1

    CPA - CORNER POST APPLICATOR

    Corner post applicator for foldable or pre-formed corners.
    Protect the corners of your load and increase stability with corner post applicator. Available one to many corner protector magazines. The corner protector are suitable for regular shaped loads with straight edges. Corners are attached to the load with horizontal wrapping.

    VARIABLE POWER PRE-SRETCH CARRIAGE

    Variable film pre-stretch carriage for precisely optimized film consumption.
    As standard the pre-stretch level is adjusted by changing pre-stretch gears. With variable pre-stretch motor, the level can be adjusted with different settings on different parts of the load.

    POWER ROPE

    Power Rope secures the load to the pallet and narrows the film for wrapping products that are lower than the film width.

    END CLOSING APPLICATOR

    The end closing applicator is an optional device for OMC-V Series wrappers that provides six-sided protection.

    RCA - AUTOMATIC ROLL CHANGER 1+3

    Increase efficiency and improve work ergonomics with automatic film roll changer.

    BBA - BOTTOM BLOCK APPLICATOR

    Automatically place EPS or wooden runners under the product and secure them with stretch film using the OMC-V Series wrapping machine.

    POWER PRE-SRETCH FILM CARRIAGE

    A motorized power pre-stretch system stretches the film before application, optimizing film consumption and reducing material costs while maintaining reliable load security.

    TOP SHEET

    The Curtain Wrapping Line provides five-sided protection for timber bundles and includes a top sheet as standard, securely tied to the product with base or logo film.

    BASE / LOGO FILM CARRIAGES

    Protect your products with base film units included as standard. Enhance the finished package with an optional logo film unit that puts your brand front and center.

    BASE FILM

    LOGO FILM

    LABEL FEEDING UNIT

    Feeds the label beneath the final film layers, ensuring it is securely protected within the package.

    SIDE TRANSFER CONVEYORS

    Side transfer conveyors move products between parallel conveyor lines. In areas with limited space, they can also provide buffer positions for pallets.
    Octomeca designs and manufactures conveyors, tailored to each customer’s product dimensions and application requirements.

    Book for a consulting / quotation request

      Select machine types



      I have read and agree to the Privacy Policy.
